It is widely recognized that walking while using your smartphone is dangerous. Despite this, smartphone-related traffic accidents continue to increase every year. That is why the term ‘Smombie’ was born, referring to those who walk with their heads down looking at their phones.
The normal viewing angle for an average human is 120~150 degrees, but for Smombies it decreases to 10~20 on the street. Also, the normal average ambient sound perception distance is 14.4m for an average person and 5m for Smombies.
As a result, worldwide floor traffic lights are being introduced in order to prevent walking Smombie accidents such as pedestrian accidents, traffic accidents, and bicycle accidents.
Establishment of
pedestrian-based traffic culture
Clear visibility and
accident prevention
Improved safety of
the vulnerable
Quick response
with real-time monitoring

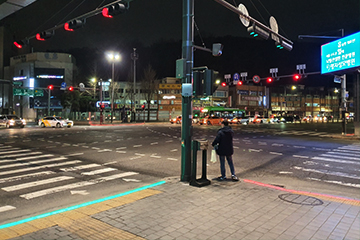

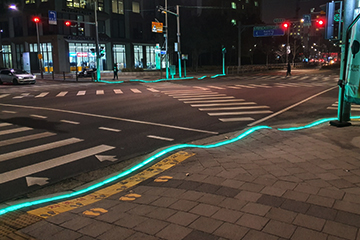

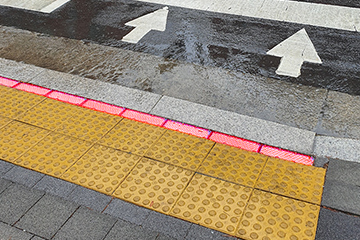

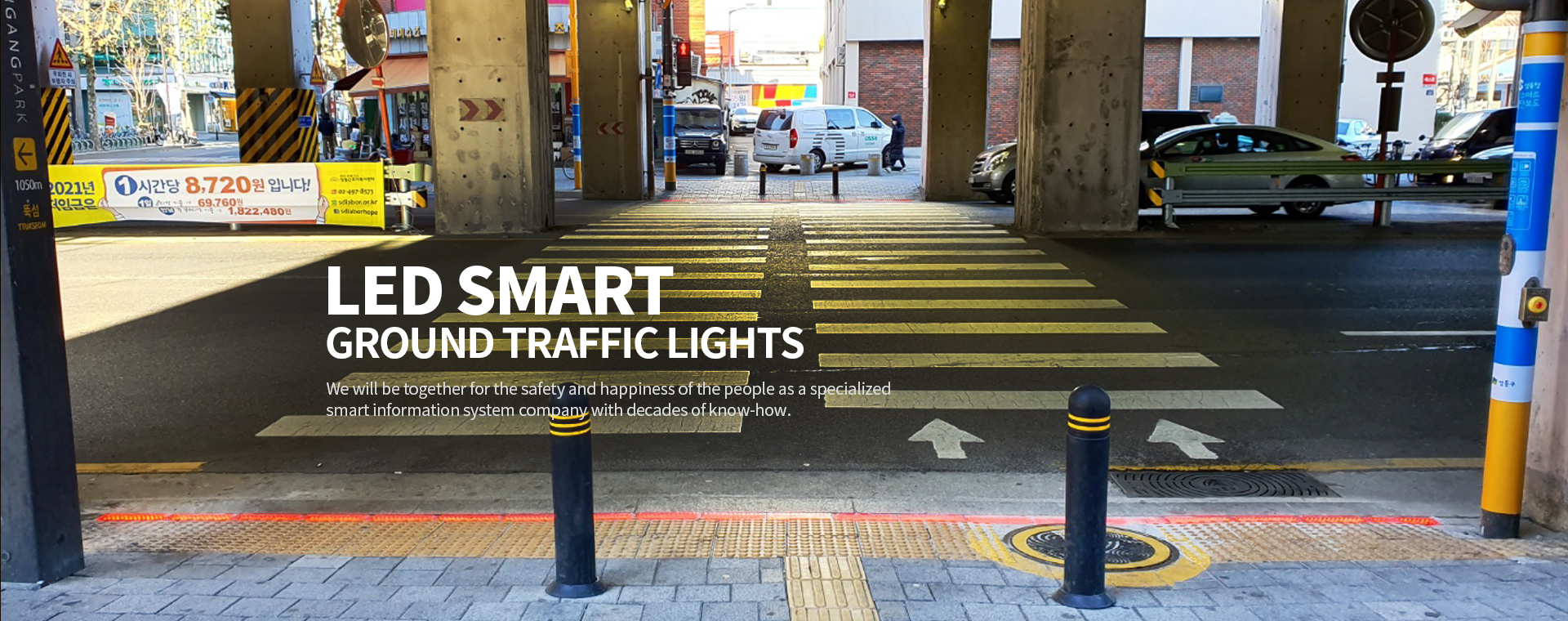

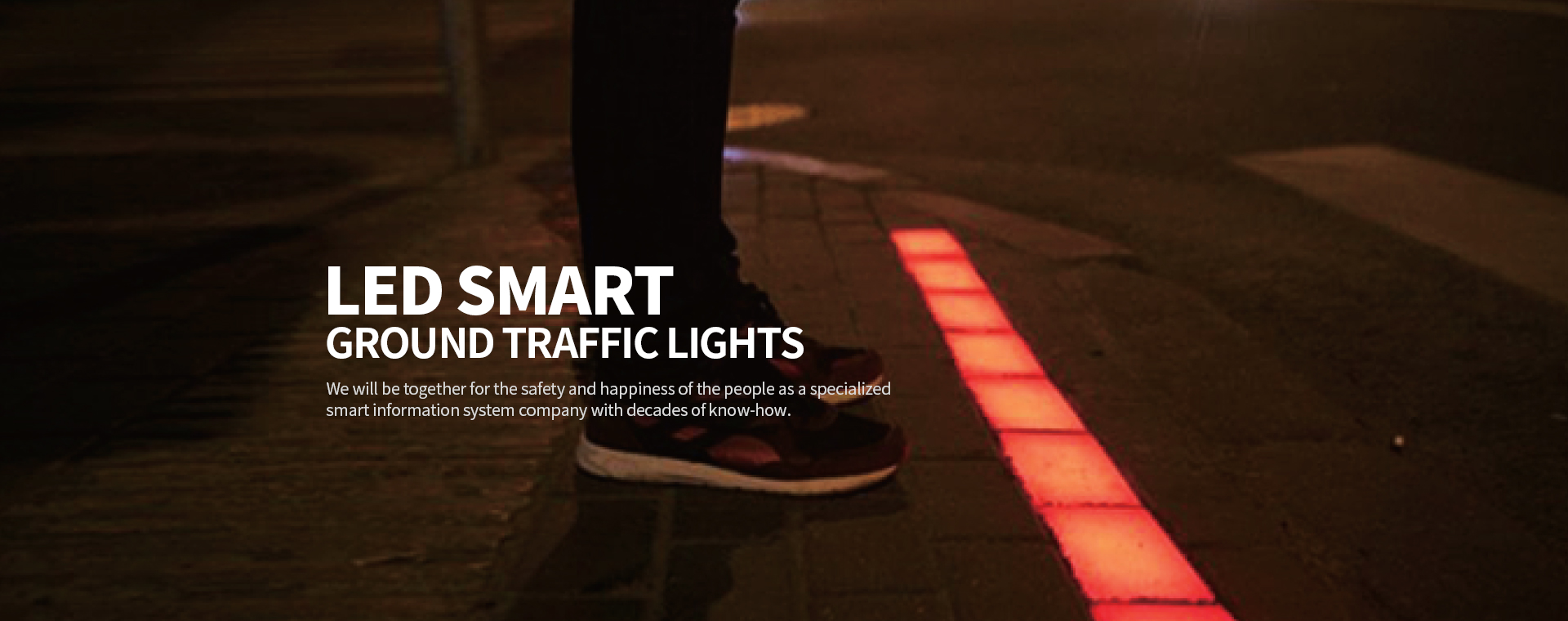

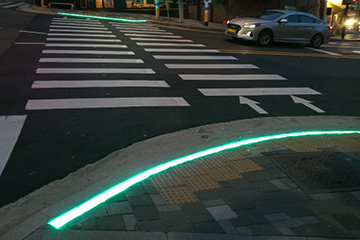

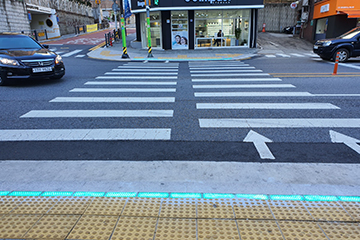

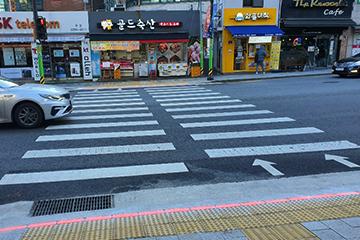

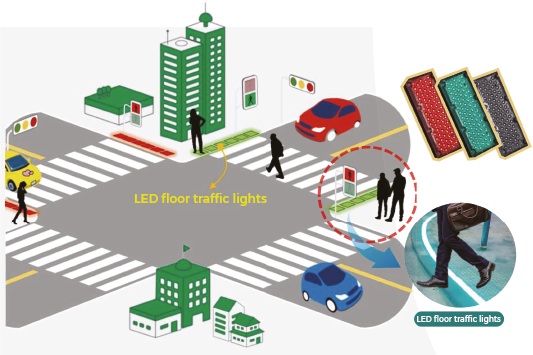

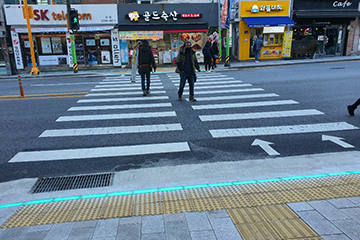

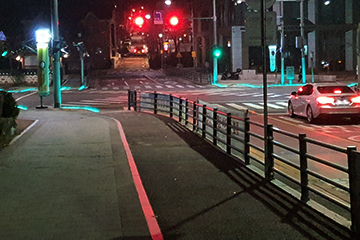

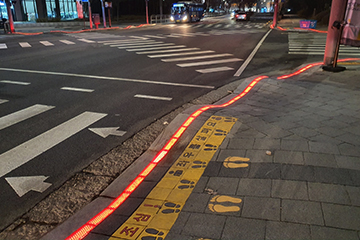

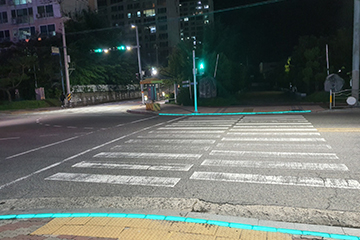

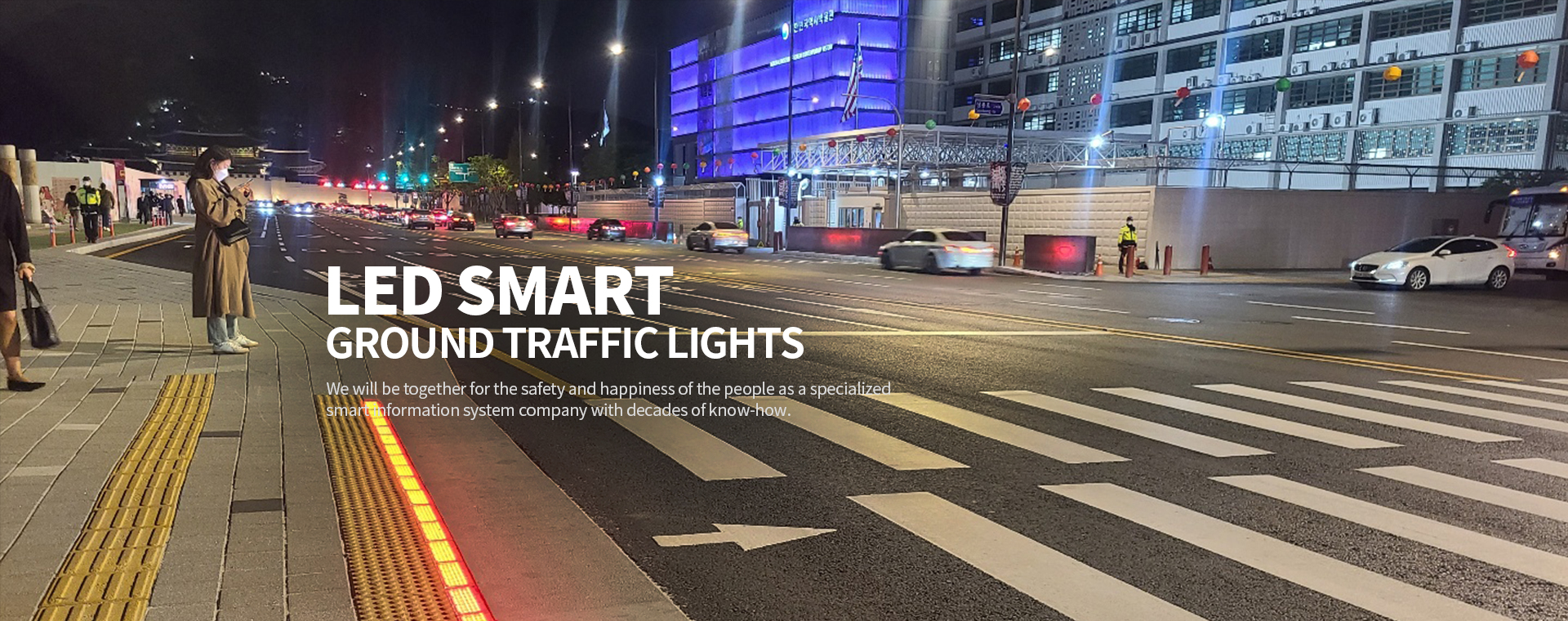

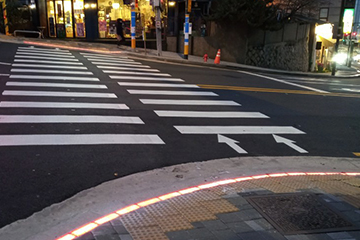

This refers to a “floor pedestrian traffic light” along the floor of the crosswalk that provides additional traffic signals to pedestrians for their convivence and safety.
The floor pedestrian traffic light works by installing an option board to the traffic signal controller that collects the traffic walking signal information and letting the floor light show the same signal in conjunction.
| Category | Specification | Note |
|---|---|---|
| Size | 300mmX100mmX60T | |
| Voltage | 24V | zero accident rate |
| Power consumption | 4W(per EA) | Monthly electricity charge of about KRW 900 (based on 20 units) |
| Outer case | polycarbonate | slip resistance: BPN40 |
| LED | High-brightness LED | Domestic product |
| Waterproof | IP68 | Class 5 waterproof |
| Durability | Maximum pressure load over 20 tons |

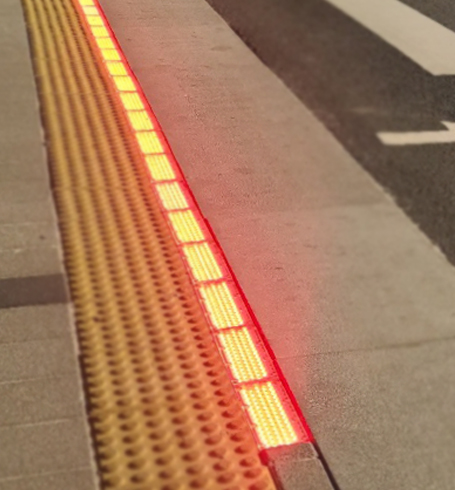

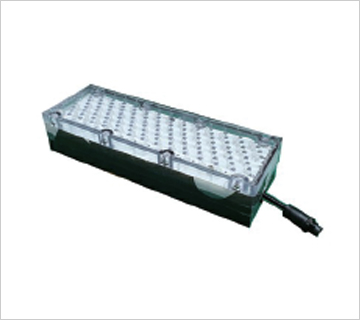

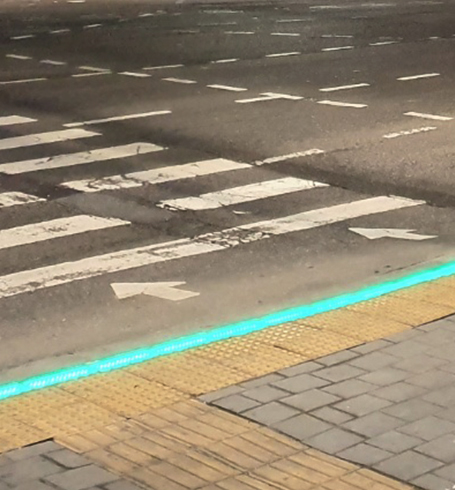

A device installed on the floor to display the
walking signal status in green, blinking, and red

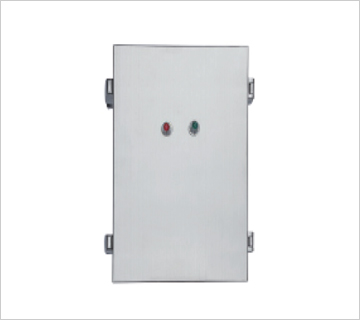

A device that collects the state of the walking
signal light from the option board installed in the
central controller, and controls the lighting in the
display unit such as dimming and other abnormal
operations.

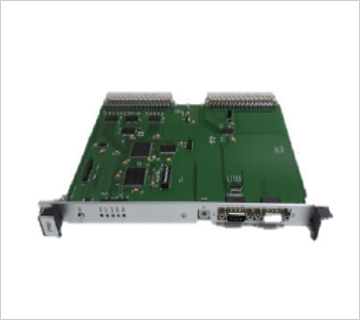

A device that is installed in the central
controller and transmits the signal status to the
control unit.
A company specializing in manufacturing LED floor traffic lights
that provides reliability and good impressions to customers.
Recognizes vehicles and pedestrians entering and exiting through the
exit and entrance gates of the construction site, controlling the floor
traffic lights and warning light.

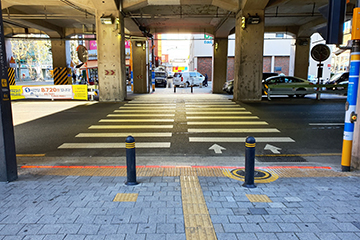

By having a loop coil on the floor of a construction site or
underpass, the central controller receives an interlocking signal
with the AI camera to provide effectively a real-time vehicle
approach caution system.

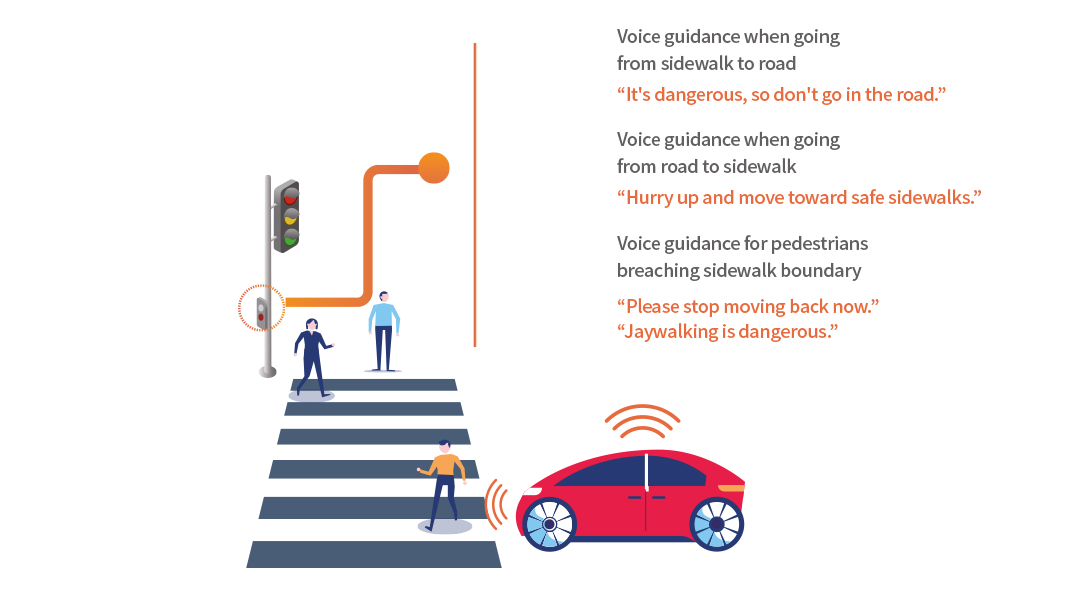

When the central controller recognizes a dangerous situation,
it broadcasts a warning through high-power speakers as well as
light the floor traffic light. This enhances pedestrian visibility and
being an effective warning.

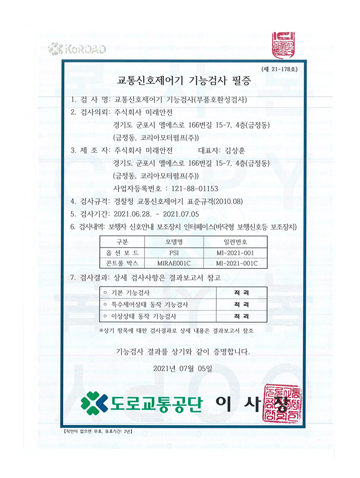

The high-powered LED floor traffic lights for pedestrian safety
have been certified by the National Police Agency.
Floor traffic light, a safety system ensuring the safety of smartphone users and those with reduced cognitive functions.

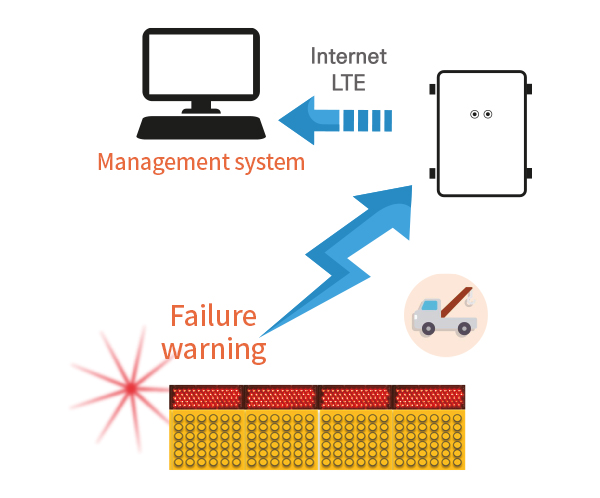

Real time monitoring of on-site systems, allowing the grasping of the status of the system and rapid Maintenace of it, also collection and management of walking signals.
LED lighting signal solution
① LED blinking in conjunction with traffic signal controller
② Remote monitoring through wire/wireless communication
③ Integrated platform with full integration support
If you make an online inquiry, such as technical consultation
or product inquiry, we will respond as soon as possible.
